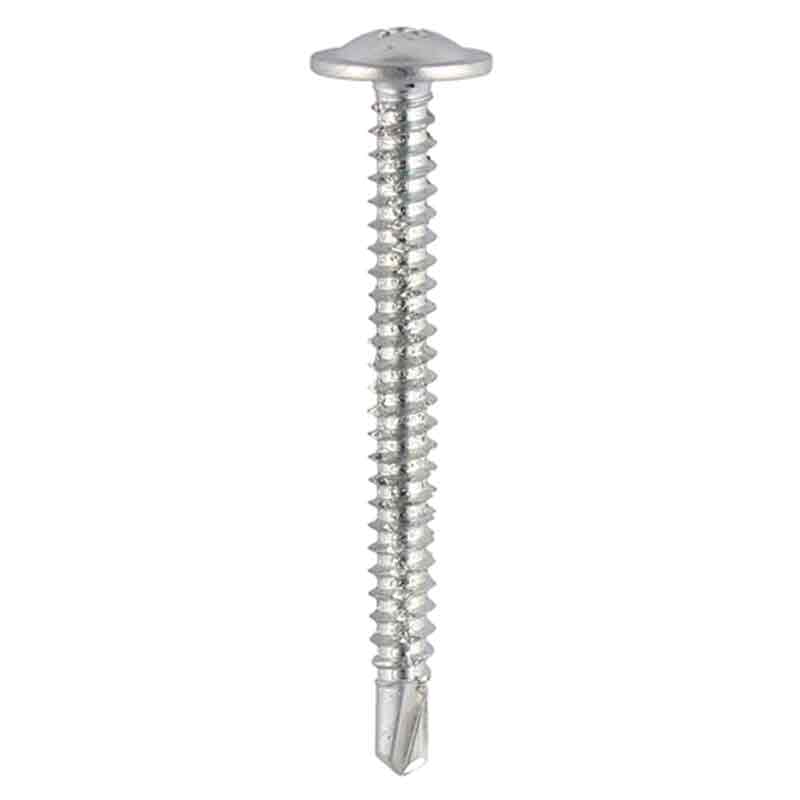

Baypole Screws - Wafer Flange - PH - Self-Drilling Point 4.8 x 80mm
Specifically designed for joining of PVCu bay window sections, but frequently used for other window and door fabrication purposes.
• Fire Classification - A1
- Brand TIMCO
- Corrosion Rating (1-5) 2 - Occasionally damp/wet, rural and sheltered areas
- Driver Bit Size PH2
- Feature 1 Fire Classification - A1
- Finish Zinc
- Head Type Wafer Flange
- Material Carbon Steel
- MDT (mm) 4
- MOQ 1
- MOQ Increment 1
- Pack Dimensions L x W x H (mm) 135 x 90 x 60
- Pack Qty 200
- Pack Type Box
- Pack Weight (kg) 0.92
- Point Type Self-Drilling
- Recess Type Phillips
- Size (mm) 4.8 x 80
- Thread Coverage Fully Threaded
- Thread Type Self-Tapping V Flute
Dimensions
- Length: 80mm
- Diameter: 4.8mm
- Head: PH2
