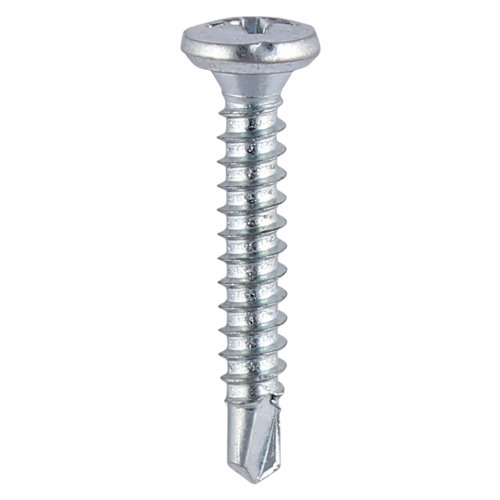

Window Fabrication Screws - Friction Stay Repair Screw - Shallow Pan Countersunk 4.8 x 16mm
For attaching friction stays with countersunk holes to steel reinforced PVCu frames. Also known as a repair screw, frequently used in stripped holes.
- Brand TIMCO
- Corrosion Rating (1-5) 2 - Occasionally damp/wet, rural and sheltered areas
- Driver Bit Size PH2
- Finish Zinc
- Head Type Shallow Pan Countersunk
- Material Carbon Steel
- MDT (mm) 4
- MOQ 1
- MOQ Increment 1
- Pack Dimensions L x W x H (mm) 135 x 90 x 60
- Pack Qty 1000
- Pack Type Box
- Pack Weight (kg) 1.46
- Pallet Qty (packs) 540
- Point Type Self-Drilling
- Recess Type Phillips
- Size (mm) 4.8 x 16
- Thread Coverage Fully Threaded
- Thread Type High-High Twin
Dimensions
- Length: 16mm
- Diameter: 4.8mm
- Head: PH2
