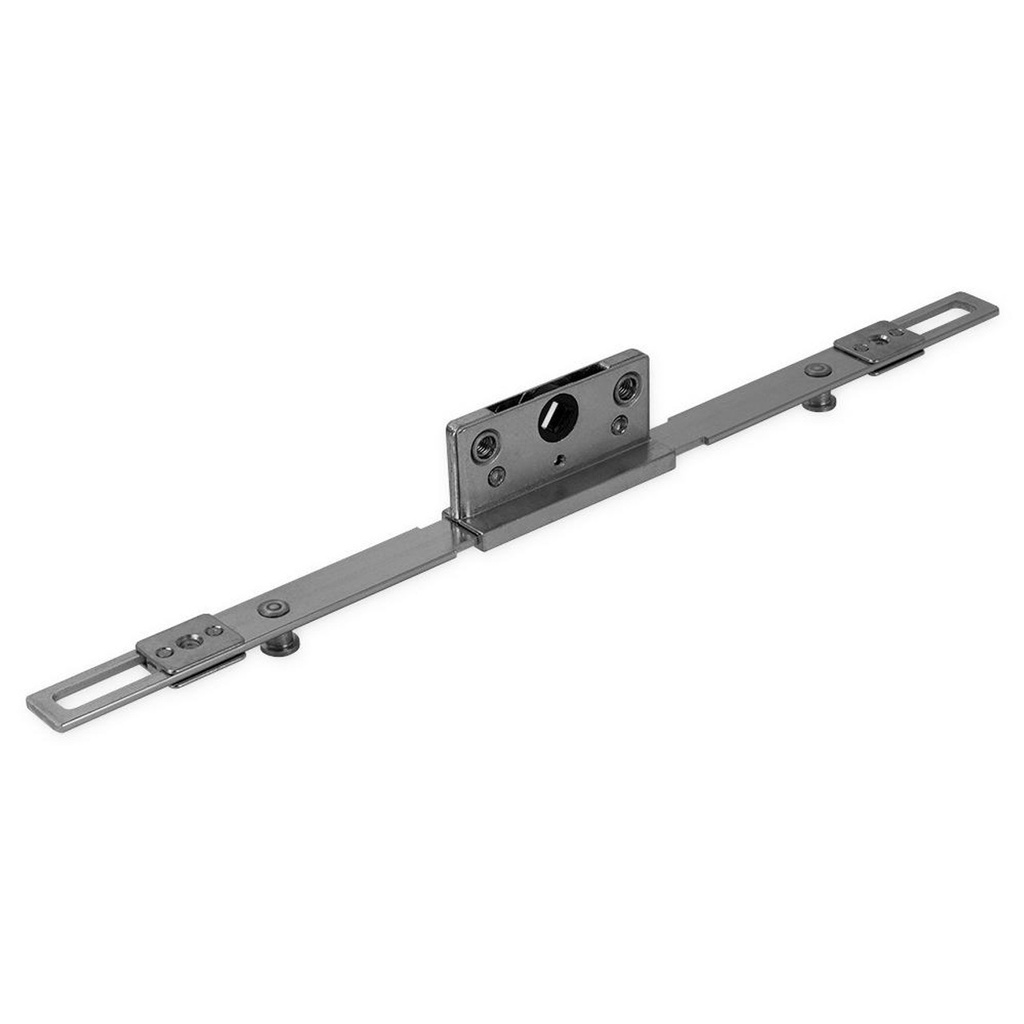

Maco Offset BS20 801 - 1000mm Espag Gearing 7.7mm
The Maco Offset is a non croppable espagnolette with mushroom locking points. The gearbox is offset, suitable for profiles without a Eurogroove.
Available in 20mm and 25mm backsets with a choice of 7.7mm and 9.00mm high adjustable mushroom cams. Lockcase is only 7mm more than backset size.
- Backset: 20mm
- Cam height: 7.7mm
- Cam adjustment: +/- 1mm
- Faceplate width: 16mm
- Designed for profiles without a 16mm eurogroove
- Offset gearbox position for slim profiles
- Sash Rebate size range: 801mm – 1000mm
- Adjustable mushroom cams
Dimensions
- Length: 781mm
- Window Size: 801 to 1000mm
- Spindle Size: 7mm
- Backset: 20mm
