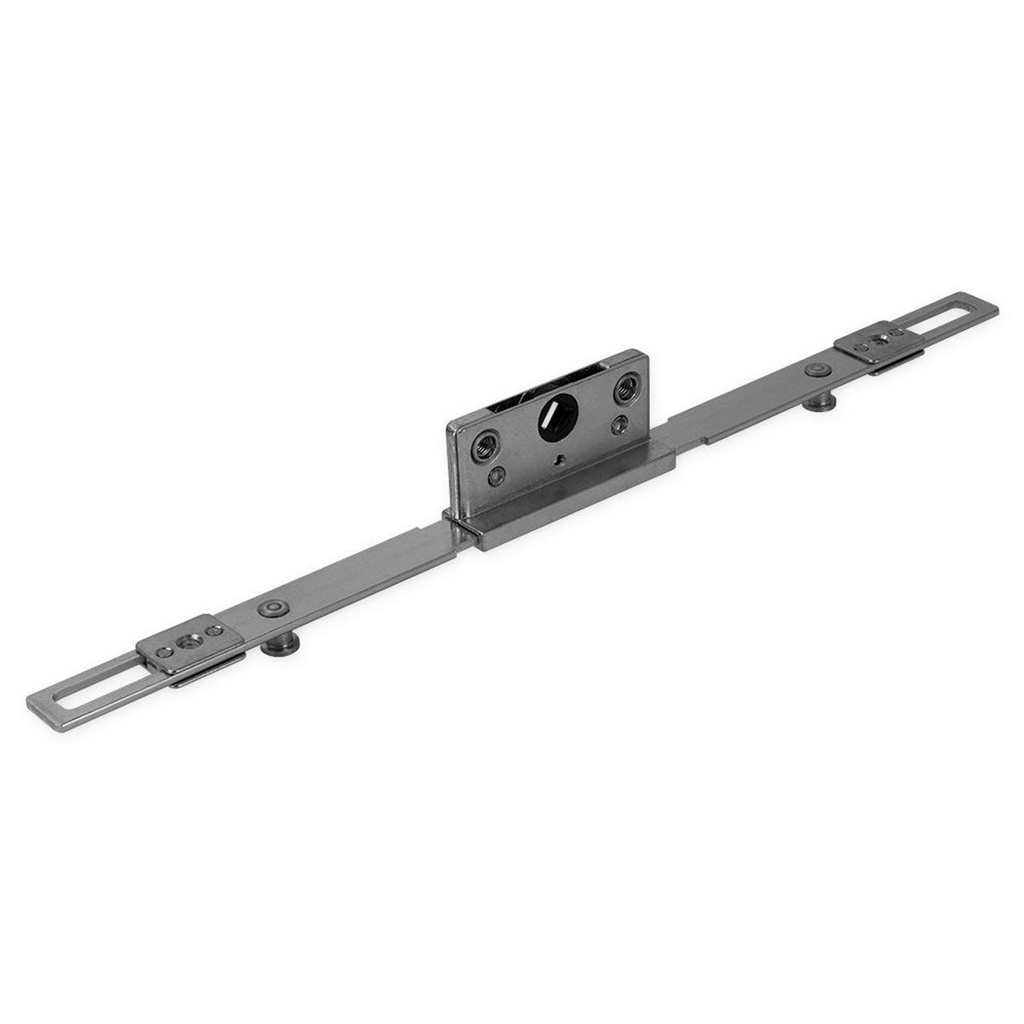

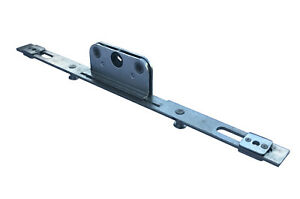

Maco Offset BS25 601 - 801mm Espag Gearing 7.7mm
The Maco Offset is a non croppable espagnolette with mushroom locking points. The gearbox is offset, suitable for profiles without a Eurogroove.
Available in 20mm and 25mm backsets with a choice of 7.7mm and 9.00mm high adjustable mushroom cams. Lockcase is only 7mm more than backset size.
- Backset: 25mm
- Cam height: 7.7mm
- Cam adjustment: +/- 1mm
- Faceplate width: 16mm
- Designed for profiles without a 16mm eurogroove
- Offset gearbox position for slim profiles
- Sash Rebate size range: 601mm – 801mm
- Adjustable mushroom cams
Dimensions
- Length: 581mm
- Window Size: 601 to 801mm
- Spindle Size: 7mm
- Backset: 25mm
