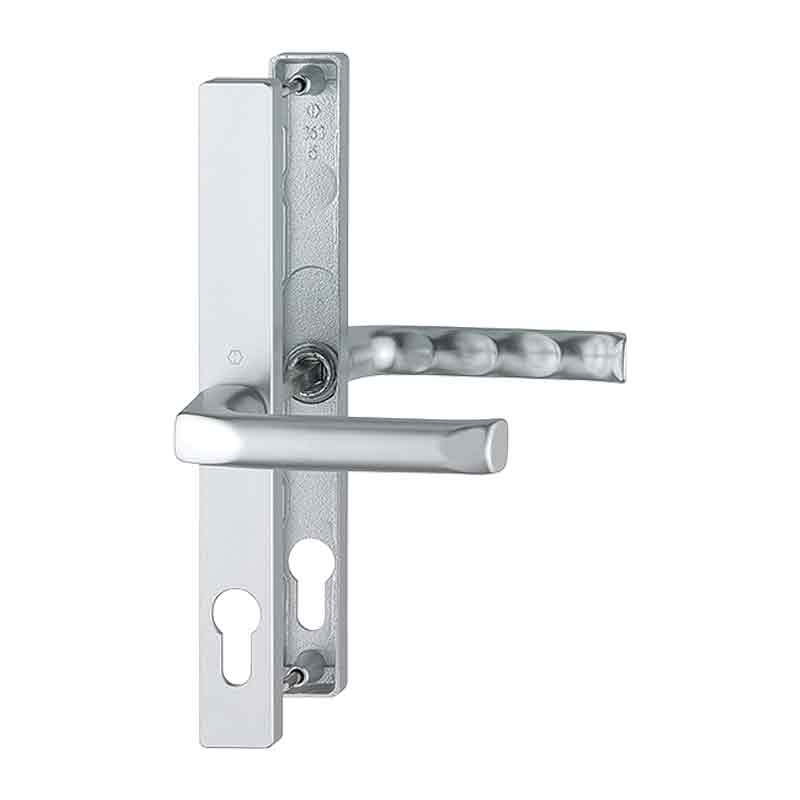

Hoppe London PZ 68mm uPVC Handle suit Fullex 215 Screw Centers
- HOPPE aluminium handle set on narrow backplate for profile doors:
- Bearing: fixed/movable door handles, maintenance-free slide bearing
- Connection: HOPPE solid spindleBackplate: supporting lugs
- Fixing: visible inside, bolt-through, M5 thread screws
- 1x 8mm Spindle Supplied.

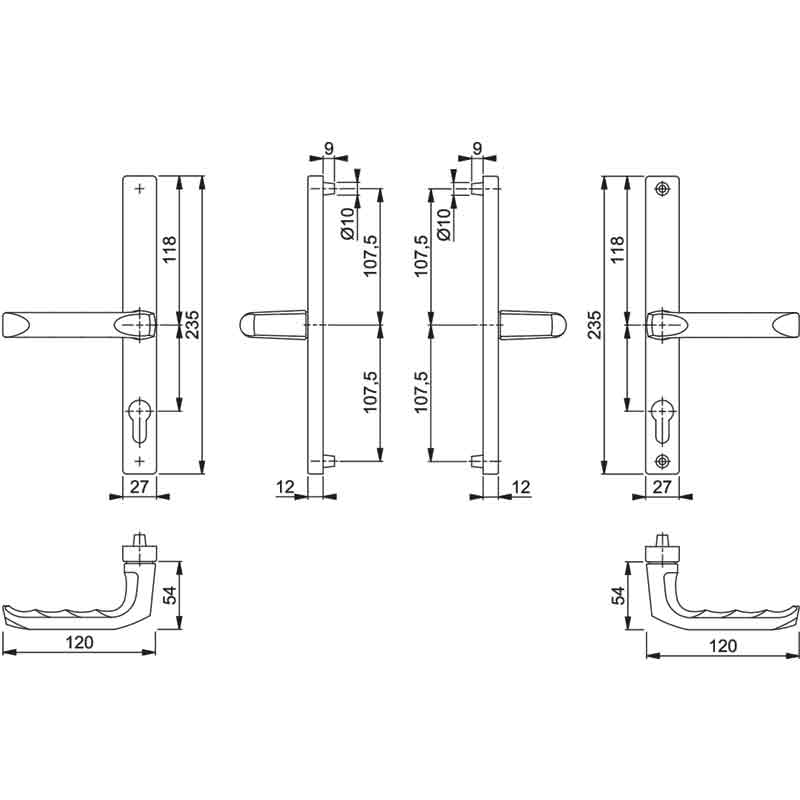

Dimensions
- PZ Size: 68mm
- Screw Centres: 215mm
- Spindle Size: 8mm
- Backplate Length: 235mm
- Backplate Width: 27mm
- Door Thickness: 60-70mm
