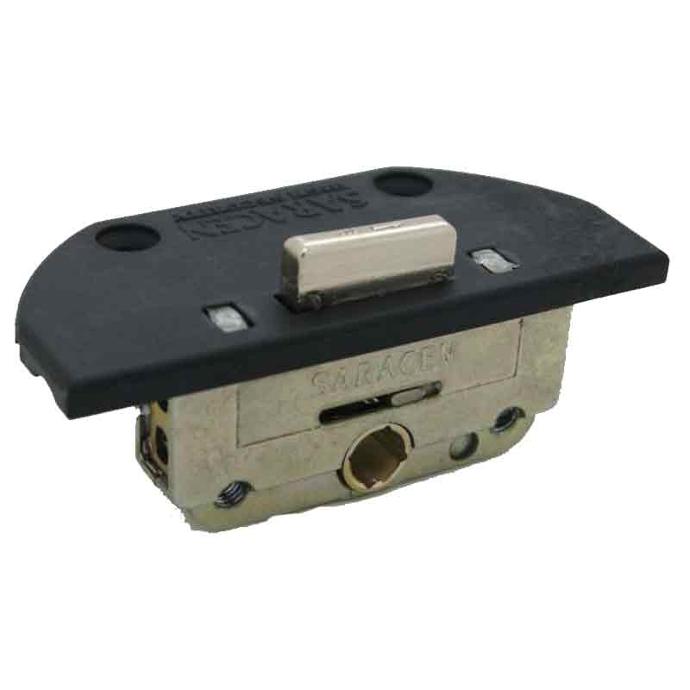

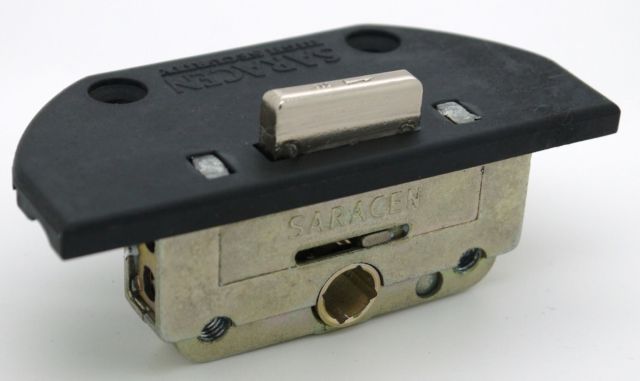

Saracen Swift Frame Window Gearbox D Plate Right Hand
Gearbox designed to work with Deadlock Shootbolt window lock. The Deadlock shootbolt system may be fitted internally or can be assembled prior to dropping into a eurogroove combining strength and durability while giving an easy to fit solution. An ideal solution for eurogroove applications and offers a cost effective for window security. The lock features a central deadbolt which is available in 9.5mm and 11.5mm throws and gearboxes are available in 20mm and 22mm backsets. Rods are available separately in 4 lengths 299mm, 429mm, 689mm and 1049mm achieving sash rebate sizes from 299mm to 1409mm. Finished in zinc and yellow passivated, satin plated and Rogard plated and the gearbox is manufactured from high strength zinc alloy.
Dimensions
- Latch Length: 13.5mm
- width: 89mm
- Spindle Size: 7mm
- Backset: 20mm
