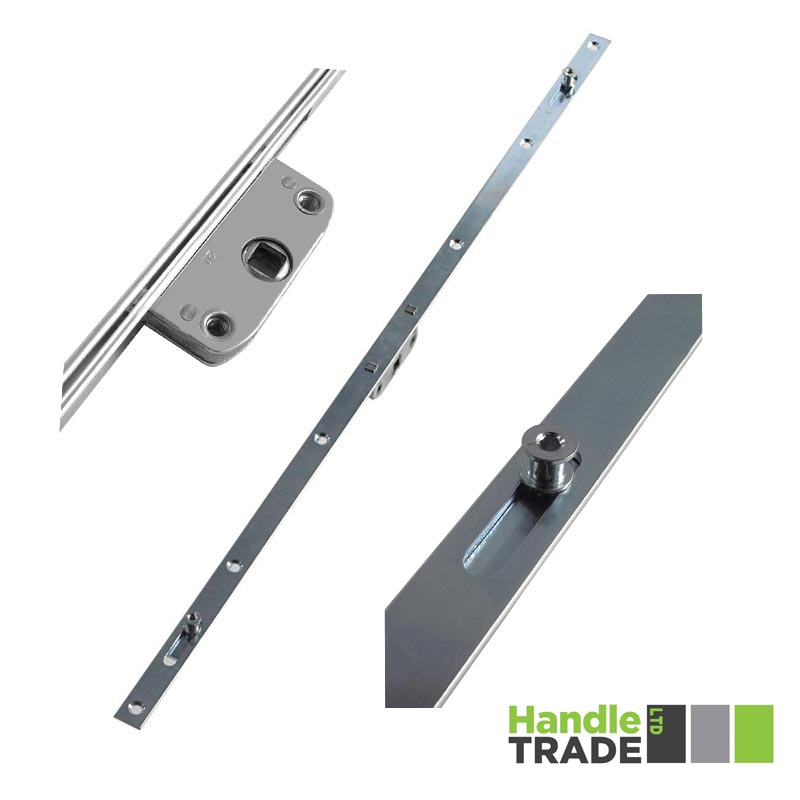

Mila iDeal Inline BS22 110mm Espag Window Gearing 9mm Cam
- Fits standard and reduced depth eurogrooves
- 1, 2 or 3 mushroom-headed steel cams
- Compression adjustable mushroom cams (+/- 1mm)
- 16mm travel
- 16mm Mild steel faceplate
- Backset: 20mm
- Cam height: 9mm
- Cam adjustment: +/- 1mm
- Faceplate width: 16mm
- Designed for profiles without a 16mm eurogroove
- Sash Rebate size range: 140 - 280mm
- Adjustable mushroom cams
- Simple to fit
Dimensions
- Length: 110mm
- Window Size: 140 - 280mm
- Spindle Size: 9mm
- Backset: 20mm
